ZOLL Base PowerCharger 1x1 with QuickCharge or AutoTest is a battery charger and testing system designed for management of Battery Packs used in ZOLL Medical Corporation resuscitation devices. The ZOLL Base PowerCharger 1x1 can be configured in either the AutoTest or QuickCharge mode. This configuration is performed by ZOLL Medical Corporation prior to device shipment. The Base PowerCharger1x1 is clearly labeled AutoTest or QuickCharge on the charger label directly beneath the product name.

AutoTest
The ZOLL Base PowerCharger 1x1 with AutoTest automatically tests battery capacity with each battery recharge (when the battery has been depleted for 10 minutes or more) and illuminates the BATT. READY indicator when the battery is fully charged. With AutoTest, the full charging cycle is complete in eight (8) hours or less for the PD4410/Smart Battery and fifteen (15) hours or less for the XL Smart Battery. The AutoTest feature virtually eliminates the need to periodically test battery capacity since this test is performed each time a battery is recharged. See the M Series Operator's Manual for battery run time information.

QuickCharge
The ZOLL Base PowerCharger 1x1 with QuickCharge illuminates the BATT. READY indicator when the battery is fully charged. The full charging cycle is complete in four (4) hours or less for the PD 4410/Smart Battery and eight (8) hours or less for the XL Smart Battery . The QuickCharge version provides no information regarding battery capacity because it does not test capacity with each recharge. The ZOLL Base PowerCharger 1x1 with QuickCharge relies on the user to manually initiate the battery test cycle at recommended intervals (see Manual Battery Testing Procedure) in order to confirm adequate battery capacity.

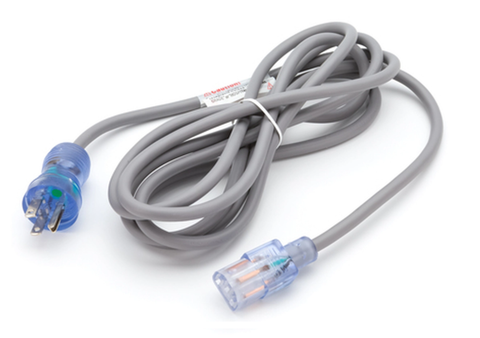

Caretech® Universal AC Power Cord, Hospital Grade, Straight, 8 ft, 16 Gauge (ea)
