The O-two CAREvent® ATV+ & MRI are pneumatically powered, time/volume cycled, intermittent positive pressure patient ventilators specifically designed for use by trained personnel in the pre-hospital, hospital, interhospital and air ambulance environments. They do not require batteries or any electrical supply to operate. The various modes of operation of the ventilators support the resuscitation and transportation of a wide range of patients (from infants to adults). The CAREvent® MRI contains no ferrous metals making it suitable for use in an MRI environment up to 3.0 Tesla. The independent controls for Minute Volume and Frequency provided by the CAREvent® ATV+ & MRI offer a comprehensive range of 12 ventilation frequencies and 12 minute volume settings providing 144 possible combinations of delivered tidal volume and respiratory rate. The ergonomically designed and colored control groupings facilitate the selection and setting of the breathing parameters while protecting the controls. The color groupings on the controls add to this “ease of use” concept. The design of the micro-pneumatic circuitry maintains a consistent I:E ratio (set at 1:2) and uses virtually no drive gas. The “Demand Breathing” feature allows spontaneously breathing patients to breathe on oxygen through the ventilator at their own rate and volume. If the demanded rate is sufficient, the “Automatic Circuit Shut Off” feature will cause the automatic cycling of the ventilator to cease when the patient takes an adequate spontaneous breath. The automatic cycling will re-start automatically should the patient stop breathing or his/her demanded volume or respiratory rate drop below the pre-determined minimum.

Compliance with the latest Guidelines for Resuscitation is provided on the CAREvent® ATV+ & MRI by the incorporation of a “Manual Override Button”. This allows for the provision of ventilations and chest compressions during CPR in the patient with an unprotected airway in accordance with these Guidelines. The manual flowrate is equivalent to the flowrate of the minute volume setting selected. For the intubated patient simply set the frequency control to 10 breaths per minute. Unique “audible and visual pneumatic alarms” for circuit disconnection (BSI), low gas supply pressure, low airway pressure and the audible high airway pressure alarm are provided to improve the level of patient safety by alerting the operator to any problems with the patient’s breathing parameters. An override control is provided for the BSI alarm to silence the alarm for 15 seconds. The adjustable “CPAP/PEEP” mode allows for these two functions to be supplied by the ventilator, eliminating the need for an external PEEP valve or CPAP device. To improve ventilator operating time during transport, or when 100% O2 is not required, an “Air Mix Mode” with replaceable environmental filter is provided allowing for an oxygen concentration of either 100 or 60%. The CAREvent® ATV+ & MRI are compatible with air ambulance use, having passed the tests for both fixed and rotary wing aircraft to the US Military Standard 810E.

FEATURES

Totally pneumatic operation
Durable construction
Independent Minute volume and Frequency controls
Manual/Auto Selector Switch
Automatic & Manual Cycling
Low input Pressure Alarm
Demand Breathing Capability with auto circuit shut off
Adjustable Pressure Relief
*G2K Compliant Version Available

SPECIFICATIONS

MINUTE VOLUME: 2 – 14 litres
BREATHS PER MINUTE: 8 – 40
I:E RATIO: 1:2
AUTOMATIC FLOW RATE: 12- 40 LPM
MANUAL FLOW RATE: As per selected setting
DEMAND FLOWRATE: Minimum 120 LPM
DEMAND TRIGGERING PRESSURE -5 cm H20 @ 100 LPM
MINIMUM INPUT PRESSURE: 45 PSI
MAXIMUM INPUT PRESSURE:70 PSI
MAXIMUM AIRWAY PRESSURE: 60 cm H2O
OXYGEN CONCENTRATION: 60 or 100%
ADJUSTABLE AIRWAY PRESSURE RANGE: 20 – 60 cm H2O
OPERATING TEMP: -18°C to +50°C (0°F to +122°F)
STORAGE TEMP: -40°C to +60°C (-40°F to + 140°F)
PATIENT CONNECTION: 9/16” DISS
PATIENT VALVE DEADSPACE: 8 ml
GAS SUPPLY STATUS INDICATOR: VISUAL
LOW INPUT PRESSURE ALARM: PULSED VISUAL and AUDIBLE
CYLINDER DURATION: AT 5L MV – 75minutes (approx.)
(Based on Aluminum “D” size cylinder containing 415 litres of oxygen)
(All specifications are subject to a tolerance of +/- 10%
except the I:E Ratio which is subject to a tolerance of +/- 20%)

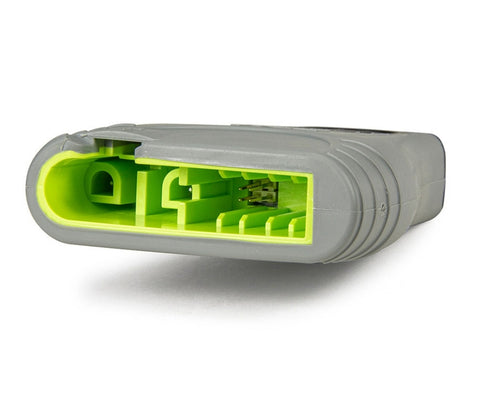

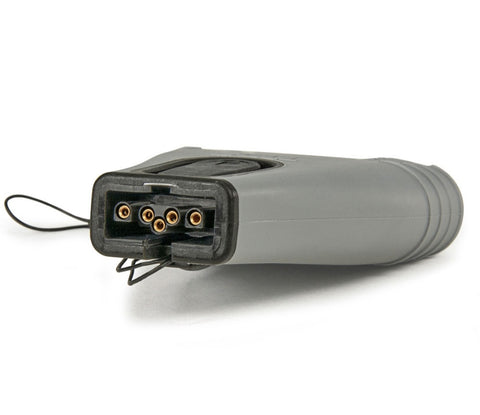

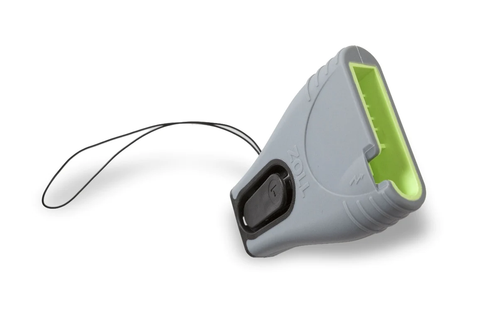

ZOLL® CPR Connector for E Series, X Series, AED Plus, CCT, X Series Advanced Defibrillators (ea)
