Laerdal Compact Suction Unit® (LCSU® 4) 800mL (ea)
Description
The next improved version of Laerdal Compact Suction Unit (LCSU) is here. Laerdal’s newest suction unit combines rugged design with lightweight portability, an essential tool for every first responder.
LCSU® 4 comes in two alternative canister versions; one configured with an 800ml canister, and one with a 300ml canister. Each version can easily be converted to the other by ordering additional parts.
Features
- “Clean” cabinet design
- Small lightweight 300ml canister version
- 1.5 kg (3.38 lbs)
- “Click-in-place” 300ml canister
- Disposable canister systems
- Available 800ml canister - when extra volume is needed
- Easy to convert between 300ml and 800ml canister versions
- Internal integrated filter systems for all canisters
- High-efficiency filter kit
- Big vacuum regulator dial, with “clicking sound”

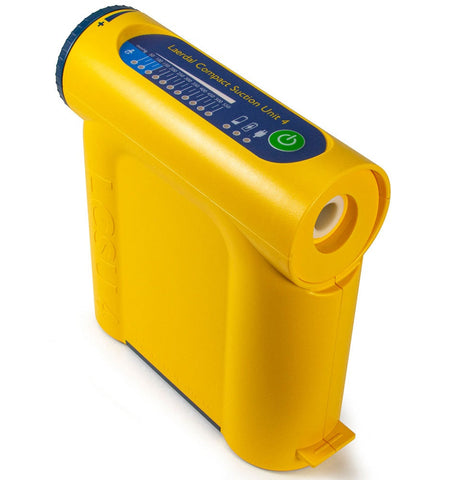

- LED display for use day or night
- Children vacuum range area on the control panel
- Arrows pointing the vacuum directions

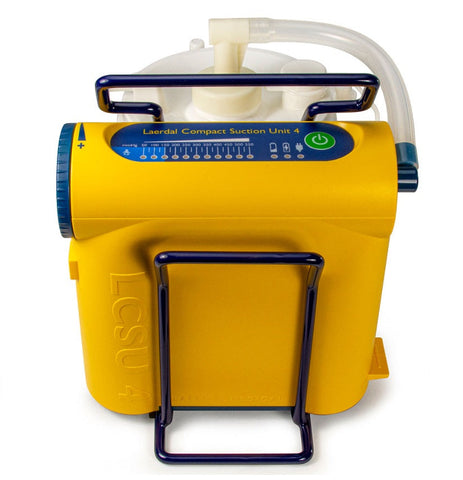

- Wire Stand for stability
- High-density bags
Performance
- Air Flow at Vacuum Inlet (all configurations): 27 LPM (free flow) typical
- Vacuum - Max.: 550+ mmHg (73.3 kPA)
- Vacuum - Range: 50 - 550+ mmHg (6.7 - 73.3 kPa)
Power options

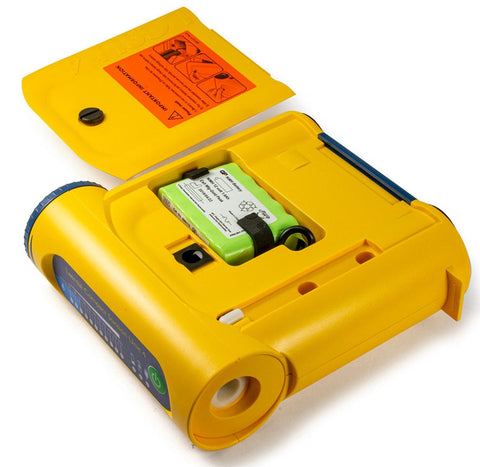

- Rechargeable Battery, NiMH 12 volt 1.6 Ah.
- Battery Runtime: Approximately 45 minutes of continuous operation at zero vacuum level (free flow), fully charged.
- Battery Charge time: 5 hours to reach full capacity
- AC/DC Adapter
- External Battery Charger
- 12V DC Power-cord for connection to vehicle power ports
Dimensions
- 300ml canister version: 18.5 cm x 26.2 cm x 8.12 cm (7.3" x 10.3" x 3.2")
- 800ml canister version: 23.6 cm x 19 cm x 23.6 cm (9.3" x 7.5" x 9.3")
Weight
- 300ml canister version: 1.53 kg (3.375 lbs)
- 800ml canister version: 1.97 kg (4.35 lbs)
Noise Level: <70dB
Alternate item number(s): 88005101
REFERENCE LIBRARY
WHAT’S INCLUDED
- 800ml Disposable Canister
- Patient Tube
- AC/DC Adapter Charger with AC Power Cord Battery
- Directions for Use
- Carry Bag
- Factory Warranty
