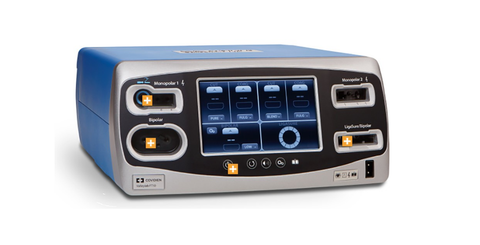

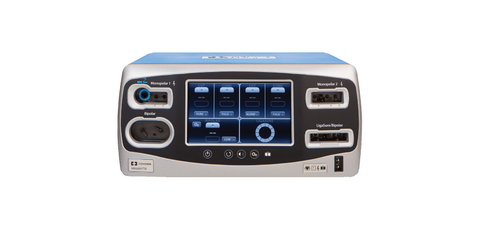

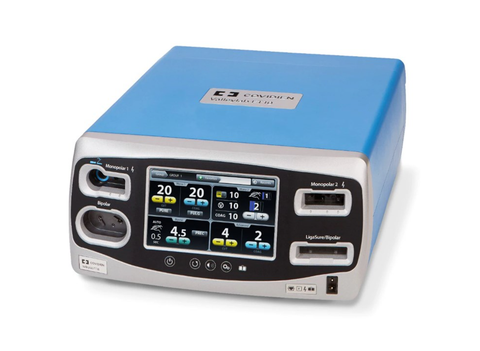

Medtronic Covidien Valleylab™ FT10 Energy Platform (ESU), Recertified
Description
The Valleylab™ FT10 Energy Platform (ESU) is a high frequency electrosurgical generator, featuring a state-of-the-art portfolio of the top energy-based devices in the industry. It features smart technology that reads tissue composition in real time, and is designed to guarantee precision. With faster sealing and cutting times, the Valleylab FT10 allows surgeons to move through procedures more efficiently.
Features
- 7 inch LCD touchscreen
- Up to 50% faster sealing times
- Autobipolar has a faster activation time
- Improved monopolar performance
- Used for monopolar and bipolar applications
- Smart TissueFect tissue sensing technology reads tissue composition in real time
Specifications
Dimensions
- Height: 7.0 in. (17.78 cm)
- Width: 14.5 in. (35.8 cm)
- Length: 18.2 in. (46.2 cm)
- Weight: 22.3 lb. (10.1 kg)
Monopolar Modes
- Monopolar Cut, Pure Mode:
- Power setting ranges: Off, 1–300 W
- Peak voltage: 1287 V
- Monopolar Cut, Blend Mode:
- Power setting ranges: Off, 1–200 W
- Peak voltage: 2178 V
- Monopolar Valleylab Mode:
- Power setting ranges: 5–85 W
- Peak voltage: 2783 V
- Monopolar Coag, Soft Mode:
- Power setting ranges: Off, 1–120 W
- Peak voltage: 264 V
- Monopolar Coag, Fulgurate Mode:
- Power setting ranges: Off, 1–120 W
- Peak voltage: 3449 V
- Monopolar Coag, Spray Mode:
- Power setting ranges: Off, 1–120 W
- Peak voltage: 3933 V
Bipolar Effects
- Low:
- Power setting ranges:Off, 1–15 W
- Peak voltage: 133 V
- Medium:
- Power setting ranges:16–40 W
- Peak voltage: 214 V
- High:
- Power setting ranges: 45–95 W
- Peak voltage: 462 V
Ligasure Tissue Fusion
- Peak voltage: 244 V
Bipolar Resection Effect
- Cut:
- Power setting ranges: 1–6
- Peak voltage: 742 V
- Coag:
- Power setting ranges: 1–6
- Peak voltage: 318 V
